Carbon Steel Precision Investment Castings Transmission Shift Fork Heavy Duty Truck Spare Parts

Carbon Steel Precision Investment Castings Transmission Shift Fork Heavy Duty Truck Spare Parts

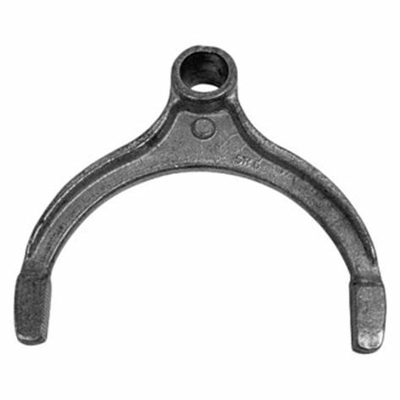

  • Carbon Steel Precision Investment Castings Transmission Shift Fork Heavy Duty Truck Spare Parts

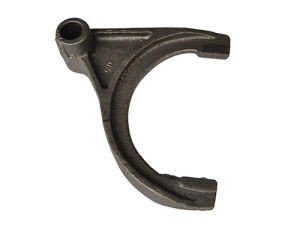

  • Carbon Steel Precision Investment Castings Transmission Shift Fork Heavy Duty Truck Spare Parts

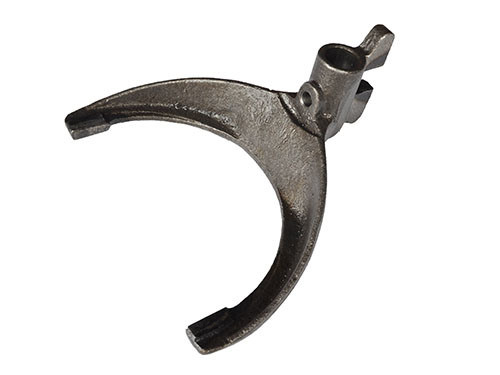

  • Carbon Steel Precision Investment Castings Transmission Shift Fork Heavy Duty Truck Spare Parts
Carbon Steel Precision Investment Castings Transmission Shift Fork Heavy Duty Truck Spare Parts
Product Details:
Place of Origin: Ningbo China
Brand Name: NC890
Certification: ISO 9001
Model Number: 890
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Wooden Case
Delivery Time: 25-30 days
Payment Terms: L/C, T/T,
Supply Ability: 30,000 pcs monthly
Contact Now
Detailed Product Description
Material: AISI 1045 Process: Investment Casting
Application: Truck Surface Finish: Sand Blast
Surface Roughness: Ra0.8 Machining Tolerance: +/-0.01mm
High Light:

steel investment casting

,

investment and precision casting

Carbon Steel Precision Investment Castings Transmission Shift Fork Heavy Duty Truck Spare Parts

Application

Shifting fork is a part of vehicle transmission gear shaft. Its purpose is to slide gears into or out of engagement with other gears in order change from one gear ratio to another in a manual transmission.This image is of the throw out bearing arm not the shifting fork.

If the fork used on the machine, it is used for variable speed, mainly used in the operating mechanism. Changing the position of lathe sliding gear can realize the variable speed. Or it is applied to control the mechanism of clutch engagement and disconnect, in order to control the horizontal or vertical feed.

With Precision Lost Wax Investment Casting process, Tractor transmission shifting forks is made from carbon steel 1045 or alloy steel, this casting should be heat treatment after machining and assemble with gearbox for speed adjustment.

Production Process:

Sand Casting, Lost Wax Investment Casting, Water Glass, Silica Sol Precision Casting

Product Information

Material stainless steel: 201, 303, 304, 316, 316L, 1.4581, SCS14, SCS16
Alloy cast steel: 4140, 4150, 4340, 8620, GS-25GrMo4
Hardening stainless steel:17-4PH, 410, 420, 440C
Cast alloy tool steel:CS-2, CS-7,
Carbon steel:1020, 1025(WCB), 1030, 1040, 1045, 1050
Weight 2g-550g
Accuracy class T4-CT7
Surface roughness Up to Ra1.6~Ra6.3
Minimum thickness 2mm(1mm or small area)
Tolerance Outer radius≥0.3mm, inner fillet≥0.5mm
Longest blind
hole(diameter 10mm)
30mm
Machining Turning milling, drilling, boring, threading, grinding machine, CNC / NC machining and test facilities
Heat treatment Anneal, quenching, normalizing.
surface treatment Zinc coating, black oxide, black painting, power painting, mirror polish, satin polish etc.
Applied standard ASTM, ICI, BS, DIN, JIS, ISO

Carbon Steel Precision Investment Castings Transmission Shift Fork Heavy Duty Truck Spare Parts 0

Our service:



1. 25 years of manufacturing success in China and exporting experience worldwide
2. Global specialized producer of machined castings.
3. We combine our own resources with some other well-developed factories to fulfill a wide range of co tract manufacturing capabilities. Working with one source, saves time and money.
4. Satisfied supplier of 7 big companies from North America and Europe.
5. Low cost mold materials and focus on efficiency offer a cost effective solution to your metal component purchasing requirements.
6. Normal lead times range from 1 to 6 weeks for fully-machined components.
7. Strong capacity to help customers develop new projects.
8. Our sales department is 24 hours available in order to help our customers solve problems quickly.



Why Choose Us



3. Competitive and reasonable price
4. Professional manufacture and offer the best service
5. OEM service is acceptable
6. Product performance
7. Fast delivery
8. Quality approvals



Carbon Steel Precision Investment Castings Transmission Shift Fork Heavy Duty Truck Spare Parts 1

How do you control your quality?

A. Produce machine have Regular maintenance.
B. From raw materials to the end produce process, every step must in according with ISO9001 standard.
C. Materials should be brought from big steel company, Mill Sheet must be showed. QC team must following all produce progress and make detailed testing records of the quality checking.
D. Third Party inspection is accepted.
