Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building

Product Details:

Place of Origin:	Ningbo,China
Brand Name:	NC019
Certification:	ISO9001,CE
Model Number:	019

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	$1-50
Packaging Details:	Crate
Delivery Time:	30 days
Payment Terms:	T/T, L/C,
Supply Ability:	80,000 pcs monthly

Contact Now

Detailed Product Description

Part Name:	Round Anchor Head	Application:	Bridge, Railway, Highway, Building
PC Strand Diameter:	12.7mm-15.24mm	Wedge Type:	2pcs Or 3pcs
Hardness Of The Anchor Head:	≤HRC33	Material:	Steel
Capacity:	2000mpa
High Light:	post tensioning system , post tension accessories

Round Flat Prestressed Anchor Head for Ring Anchorage in Concrete Building

Description

Anchorage for prestressing work. In post-tensioned concrete, anchorage anchors play a very important role. The effect of pre-stressing depends on the load that the anchors allow, and anchors’ capability decides the security of the post-tensioning.

GYM series of Post Tension Prestressing Steel Strand Ring Anchorage

1.Type: Single-hole, Multi-hole; Circular, Flat

2.Parts: Anchor Ring/Plate, Wedge, Base Plate etc

3. Have a high anchor efficiency and very good performance

4. Easy to use,safe and reliable

GYM series of Post Tension Prestressing Steel Strand Ring Anchorage

1. M15 applies to 15.2/15.24mm, 15.7mm pc strand.

2. M13 applies to 12.7mm, 12.5mm & 12.9mm pc strand.

3. M18 applies to 17.8mm pc strand.

4. M22 applies to 21.6/21.8mm pc strand.

5. M11 applies to 10.8mm pc strand.

6.M10 applies to 9.3mm, 9.53mm pc strand.

7. M7, M6, M5 apply to 7.0mm, 6.0mm, 5.0mm spiral ribbed pc wire

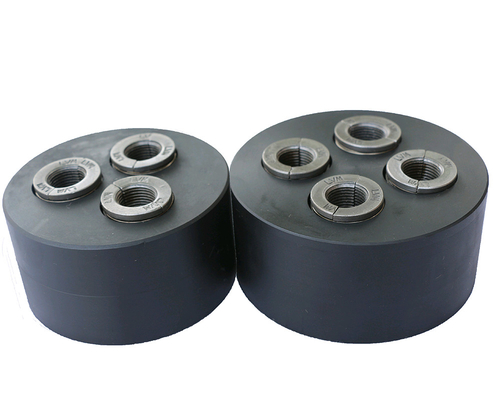

Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building 0

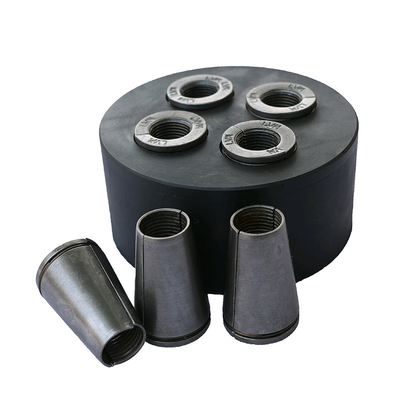

Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building 1

Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building 2

Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building 3

With professional technical team and support from China Academy of Building Research, we have the experience and a proven ability to create solutions that help reduce timescales and deliver exceptional results, meanwhile ensure the safety and stability of construction.

Quality Control

1. all the raw materials will be tested before putting into the production.
Material for Anchor head: 45# steel or 40 Cr
Material for Wedge: 20 CrMnTi
2. Crack detection and measurement for all the anchor heads and wedges.
3. Hardness test for the anchor heads and wedges.
4. Static load test

Flat Prestressed Post Tension Anchor Round Anchor Head For Concrete Building 4

Our Advantage

1).We are one of the leading manufacturer and exporter with a history of more than 20 years, enjoying an excellent
reputation and keep a good relationship with many foreign companies, especially in Japan, Europe, America and
Southeast Asia.

2).We have a lot of high precise Machining equipment and high precision testing equipment, our manufactory also
have a large number of engineers. we can provide the best products and the best service for you.

FAQ

Can you supply stocks? Can you deal small orders?
A: Yes, Small orders can also be accepted.

Do you provide samples? is it free or extra?
A: Yes, we can offer samples free of charge. But the express cost should be on buyer's account.

If found the product with substandard quality. How can you solve it?
The buyer will be required to submit proof file, picture, video of the said substandard cargo to
us first. We can also send our engineer to your field to check it directly, if necessary.
