2 Pieces Concrete Slab Anchors Wedges For Post Tension Construction

Product Details:

Place of Origin:	Mainland China
Brand Name:	NC871
Certification:	ISO9001.CE,SGS
Model Number:	871

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	$1-50
Packaging Details:	Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	80,000 pcs monthly

Contact Now

Detailed Product Description

Part Name:	Wedge	Hardness:	58-63HRC
Type:	2 Pcs Or 3 Pcs	Material:	20CrMnTi
Diameter:	24.6mm / 28.4mm	Weight:	58g / 86g
Sample:	Available
High Light:	post tension accessories , prestressed anchorage

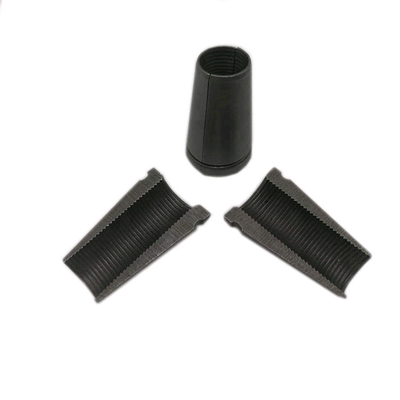

2 Pieces Slab Concrete Anchorage Wedges for Post Tension Construction

Description

The wedge anchor uses the wedge principle to anchor the strand, that is, wedge-shaped clamping piece wedges strand into the wedge-shaped taper hole of anchor plate, when using jack to tension the strand, after achieving the designed stress value, the jack is slowly released, the anchor of the clamping piece is retracted into the tapered hole of the anchor plate to form an anchor unit by strand, the stress of the steel strand passes the anchor plate to the building structure to form a permanent prestress.

Feature of wedge

1. Flip flop wedges teeth is sharp and clean, easy to clamp the strand.

2. Flip flop wedges can matched for single-hole, multi-hole, round and flat anchor head.

3. Flip flop wedges has high anchor efficiency and good performance.

4. Customized accepted.

Product Details

SPECIFICATION
Description	12.7mm	15.2mm/15.7mm(UK)
Material	20CrMnTi	20CrMnTi

2 Pieces Concrete Slab Anchors Wedges For Post Tension Construction 0

Our Service

Strict quality control system
Free samples and free freight charge if the samples are not too heavy
Customized products are available
Professional consultation and service

FAQ

1.Can you offer sample?
Yes, We can supply free samples but the freight are charged by customer.

2.How about payment term?
30% T/T in advance ,balance before shippment

3.How about the delivery time?
Generally it takes 10-15 days after we received your deposit.
