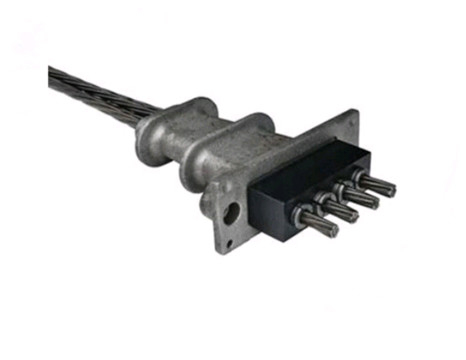

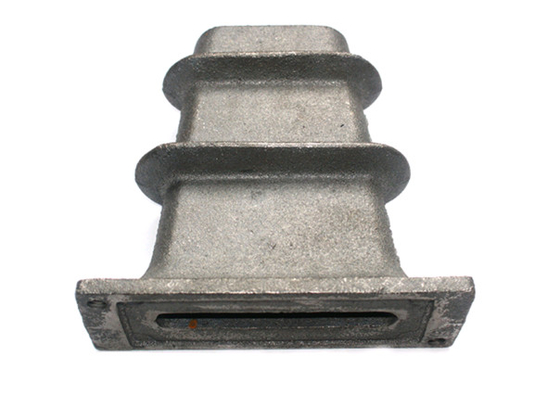

Post Tensioning Concrete Curved Flat Anchor 50cm Length For Bridge / Railway

Post Tensioning Concrete Curved Flat Anchor 50cm Length For Bridge / Railway

  • Post Tensioning Concrete Curved Flat Anchor 50cm Length For Bridge / Railway
  • Post Tensioning Concrete Curved Flat Anchor 50cm Length For Bridge / Railway
  • Post Tensioning Concrete Curved Flat Anchor 50cm Length For Bridge / Railway
Post Tensioning Concrete Curved Flat Anchor 50cm Length For Bridge / Railway
Product Details:
Place of Origin: Mainland China
Brand Name: NC023
Certification: ISO9001,CE,SGS
Model Number: 023
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Can talk
Packaging Details: Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 80,000 pcs
Contact Now
Detailed Product Description
Product Name: Curved Flat Anchor Material: Steel Or Cast Iron
Application: Bridge, Railway, Highway Length: 50cm
Standard: BS,GB,ISO,JIS,CE,KS, BS,GB,ISO,JIS,CE,KS Diameter: 15.24mm/12.7mm/9.53mm
Inspection: 100%
High Light:

post tension accessories

,

prestressed anchorage

,

post tensioning system

Post Tension Arc Anchorage Prestressed Concrete Curved Flat Anchor



Product Description




BM15/13 arc flat anchors for 15.2-15.7, 12.7-12.9mm stand. Arc flat anchors Use in pre-tensioned ,post –tensioned panels, no beam floors or need to lower the beam height. Arc Flat anchors including flat anchor plate, working clip.



Bonded Flat slab S3 Anchors

bonded flat slab S3 anchors use 2 No. 15.24mm seven-wire prestressing strands or 3 No. 12.7mm seven-wire prestressing strand. Tensioning method of Pre-Stressing enables a builder to capitalise on all of the advantages of Pre-Stressed concrete or masonry. The Anchor are Ductile Iron, QT450, PN16.

Bonded Flat slab S5 Anchors

bonded flat slab S5 anchors use 4 No. 15.24mm seven-wire prestressing strands or 5 No. 12.7mm seven-wire prestressing strand.widely used in concrete structure and soil / rock retaining walls.



Product Details



Post Tensioning Concrete Curved Flat Anchor 50cm Length For Bridge / Railway 0

Type

Fixed-end

anchor plate

Spiral bar

Constraint

circle shape

Flat corrugated

pipe diameter

C(min)
BM15P-2 140x70 16T 130x100 200L 80x50 50x22 190
BM15P-3 180x70 16T 170x100 250L 90x50 60x22 250
BM15P-4 220x70 16T 210x100 300L 100x50 70x22 320
BM15P-5 260x70 16T 250x100 300L 120x50 90x22 400





FAQ



Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
