Building Materials Post Tension Anchor Wedges For 12.7mm 15.2mm PC Strand

Building Materials Post Tension Anchor Wedges For 12.7mm 15.2mm PC Strand

  • Building Materials Post Tension Anchor Wedges For 12.7mm 15.2mm PC Strand
  • Building Materials Post Tension Anchor Wedges For 12.7mm 15.2mm PC Strand
  • Building Materials Post Tension Anchor Wedges For 12.7mm 15.2mm PC Strand
Building Materials Post Tension Anchor Wedges For 12.7mm 15.2mm PC Strand
Product Details:
Place of Origin: Mainland China
Brand Name: NC935
Certification: ISO9001,CE,SGS
Model Number: 935
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Can talk
Packaging Details: Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 90,000 pcs monthly
Contact Now
Detailed Product Description
Item Name: Anchorage Wedge Application: Building Construction
Material: 20CrMnTi, 20CrMn5 Length: 36mm
Diameter: 25mm Surface Treatment: Galvanized Or Black
OEM: Available
High Light:

post tension accessories

,

prestressed anchorage

,

post tensioning system

Building Materials Post Tension Anchorage Wedges For 12.7mm 15.2mm PC Strand

Application

The3-Piece anchor wedges are useful in higher stress applications where the anchor is loaded and simply locked off, typical to temporary applications.They are Anchor Head Wdeges.
Features:
All wedges are equipped with a ring to keep the wedge attached to the tendon during elongation and /or tensioning operations.

Product Details



Production Forging ,improve the metallographic structure
Type two or three parts
material 20CrMnTi
Inspection Flaw detection,Deoxidation
Surface hardness HRA79-84
Core Hardness HR38-46
Carbonitriding Layer Depth 0.35-0.6mm/0.6-0.8mm
Metallographic Analysis Carbonitride, Tempered,Retained Austenite

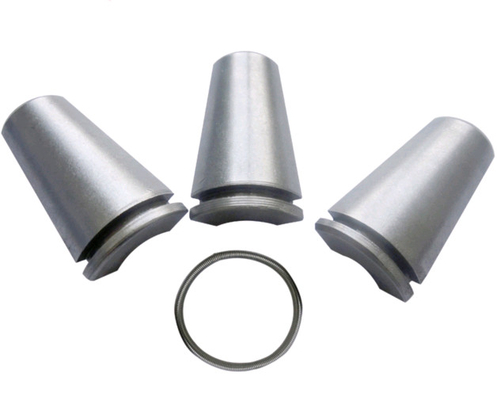

Building Materials Post Tension Anchor Wedges For 12.7mm 15.2mm PC Strand 0

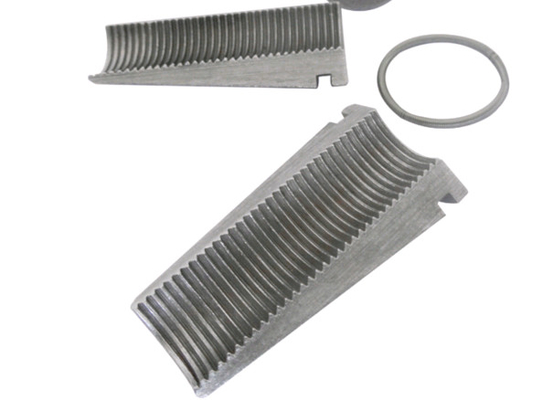

Building Materials Post Tension Anchor Wedges For 12.7mm 15.2mm PC Strand 1



Production Process

1. The anchor wedges are manufactured from case hardened steels and are case hardened for durability.Accurate,
automated production plus stringent testing guarantee the highest quality.
2. The anchorage systems develop the required strength through the interplay between wedges and prestressing steel,
and between the wedges and anchor plate. Characteristics that effect this interplay are wedge angle, wedge teeth amplitude
and spacing, type of steel, type of heat treatment, and general strand configuration in the anchor plate.

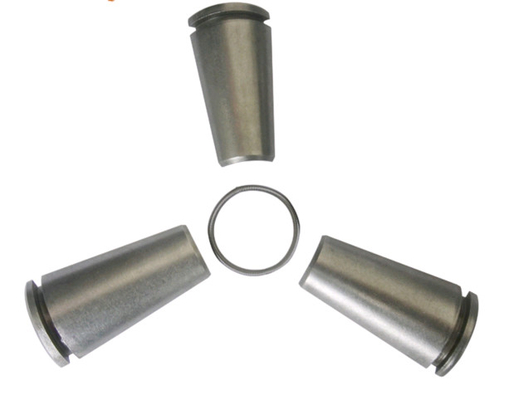

Building Materials Post Tension Anchor Wedges For 12.7mm 15.2mm PC Strand 2



FAQ

Q: Do you provide samples ? is it free or extra ?

A:Yes, we can offer samples free of charge. But the express cost should be on buyer’s account.

Q:How long is your delivery time?

A:Generally it is according to the quantity and the type.It is usually from 5 to 15 days.

Q:What is your terms of payment?

A:We accept T/T, irrevocable L/C at sight, D/P and D/A.For the T/T payment, we accept 30% prepayment in advance and the balance payable against the copy of B/L.
