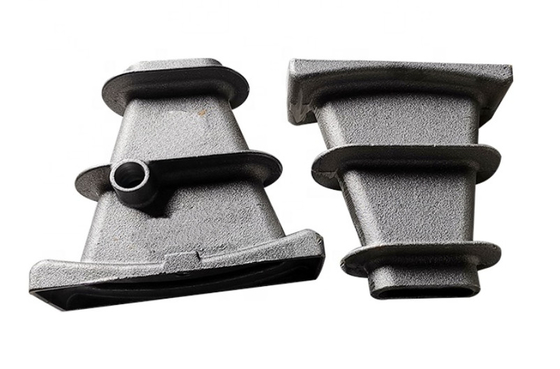

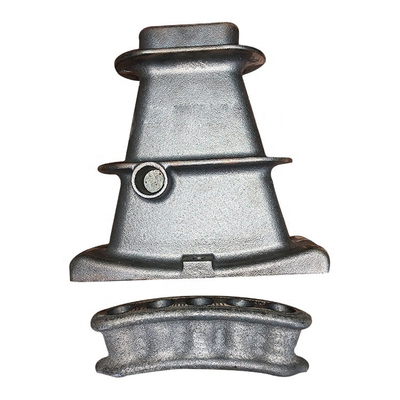

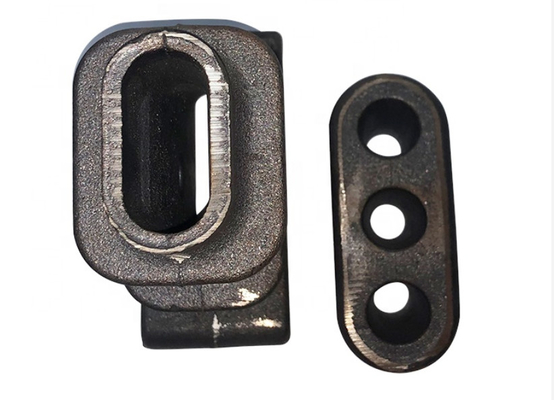

Post Tension Arc Anchorage Prestressed 3-hole Curved Flat Anchor

Post Tension Arc Anchorage Prestressed 3-hole Curved Flat Anchor

  • Post Tension Arc Anchorage Prestressed 3-hole Curved Flat Anchor
  • Post Tension Arc Anchorage Prestressed 3-hole Curved Flat Anchor
  • Post Tension Arc Anchorage Prestressed 3-hole Curved Flat Anchor
Post Tension Arc Anchorage Prestressed 3-hole Curved Flat Anchor
Product Details:
Place of Origin: Mainland China
Brand Name: NC8752
Certification: ISO9001,CE,SGS
Model Number: 8752
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Can talk
Packaging Details: Wooden Case
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 50,000 pcs per month
Contact Now
Detailed Product Description
Item Name: Arc Anchorage Prestressed Flat Anchor Material: Cast Iron
Diameter: 12.7mm, 15.2mm Application: Bridge, Railway, Highway, Building, Tunnel, Slope Strengthening
Anchor Wedges: Two Parts Or Three Parts Capacity: 16T

Post Tension Arc Anchorage Prestressed 3-hole Curved Flat Anchor



Product Details



Bonded Flat slab S3 Anchors

bonded flat slab S3 anchors use 2 No. 15.24mm seven-wire prestressing strands or 3 No. 12.7mm seven-wire prestressing strand. Tensioning method of Pre-Stressing enables a builder to capitalise on all of the advantages of Pre-Stressed concrete or masonry. The Anchor are Ductile Iron, QT450, PN16.



Bonded Flat slab S5 Anchors

bonded flat slab S5 anchors use 4 No. 15.24mm seven-wire prestressing strands or 5 No. 12.7mm seven-wire prestressing strand.widely used in concrete structure and soil / rock retaining walls.



Type

Fixed-end

anchor plate

Spiral bar

Constraint

circle shape

Flat corrugated

pipe diameter

C(min)
BM15P-2 140x70 16T 130x100 200L 80x50 50x22 190
BM15P-3 180x70 16T 170x100 250L 90x50 60x22 250
BM15P-4 220x70 16T 210x100 300L 100x50 70x22 320
BM15P-5 260x70 16T 250x100 300L 120x50 90x22 400

Post Tension Arc Anchorage Prestressed 3-hole Curved Flat Anchor 0

Post Tension Arc Anchorage Prestressed 3-hole Curved Flat Anchor 1

Factory Information


Sunrise Foundry is an enterprise of Prestressed Anchor and Wedge.After 20 years development, the enterprise has already got the research, design, production, construction and other integrative ability in the Prestressed Anchorage System field.



Why Choose Us


Company quality

The company operates a Quality Management System that complies with ISO 9001 and all products are manufactured to exacting standards using high specification materials. Our products are approved and tested according to the latest national standard requirements.

Company commitment

Involved in projects from conception to construction, we offers assistance to help clients meet the requirements of the stru cture and local technical standards.

Together-contribute to charity
Part of your each payment will be used to fanance the orphans' living and learing in SOS children's village. Together, let's make a difference.
